2 years ago we developed a 19 inch 2U Mini-ITX Case as a 'custom case' for a specific project.

We had one of them left and sent this one to Jeff Geerling when we heard he was starting a test with a Raspberry Pi cluster and was looking for a 2U mini-ITX case.

We had no plans for producing them again but because we received so many requests for it we started to develop an improved version... Here it is finally!

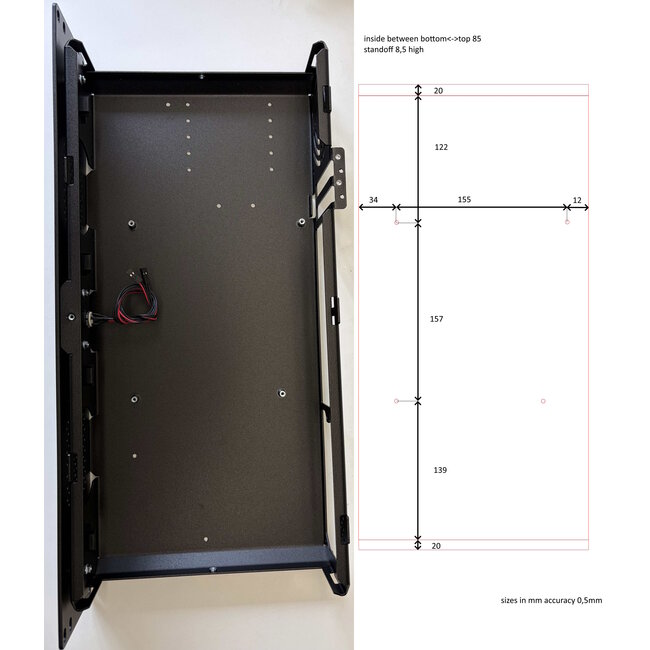

19 inch Mini-ITX case 2U Short depth

Specifications:

• Short depth (225 mm only!)
• Lightweight: made of high-grade Aluminum
• Suitable for SFX / SFX-L power supply unit*
• Max. 5x 2.5" SSD+ 1x 2.5" SSD (with SFX PSU)
  • or Max. 1x 3.5" HDD + 1x 2.5" SSD (with SFX PSU)
• Max. 5x 2.5" SSD (with SFX-L PSU)

  • or Max. 1x 3.5" HDD (with SFX-L PSU)
• 2x PCI low-profile slot (suitable for Dual Slot PCI)
• 4x Connector inserts in front (available are USB, HDMI, LAN, Audio)**
• 6x Connector inserts in back (available are USB, HDMI, LAN, Audio)**
• Space for 3x fan 80 x 25 mm
• 100% Mini-ITX compatible
• Turing Pi 2 compatible

Size:

• Height 2U - 88.5 mm
• Width 19 inch - 483 mm
• Depth 225 mm
• Weight 1400 gram

The max. cooler height is aprox. 67mm (measured from top of CPU, and 75mm measured from top of mainboard PCB.

Included:

• Power Button with LED
• PCI low-profile blinds
• 4x Connector slot blinds in front
• Screws for mounting Motherboard, HDD and SSD's

Reviews/projects built with this rack mount:

• Blastmode7 on Reddit
• Jeff Geerling's Gaming/Linux PC
• Video about this case being built as PC
• Completely built by Quiet PC
• Jeff Geerling on Reddit

Download PDF info sheet here

*Due to various worldwide and European regulations, we don't offer a PSU. You can locally source a power supply according to the SFX or SFX-L standard.

** You can use the small rectangular slots on the back to feed the cable from the I/O plate of the board to the inside front of the case and snap in the connector (USB/HDMI/LAN/Audio)

*** This product weighs too much/is too big to ship with PostNL. Shipping with FedEx/DPD only.
