A multi-brand SBC rack mount 1U 19 inch

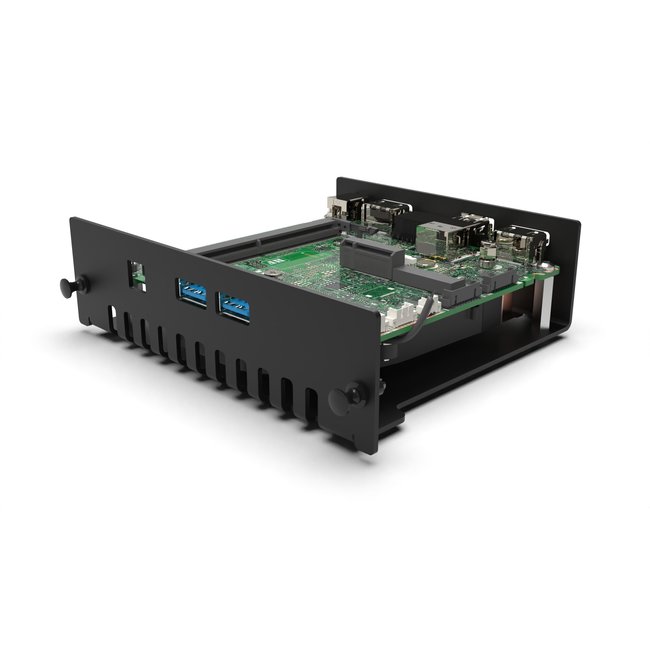

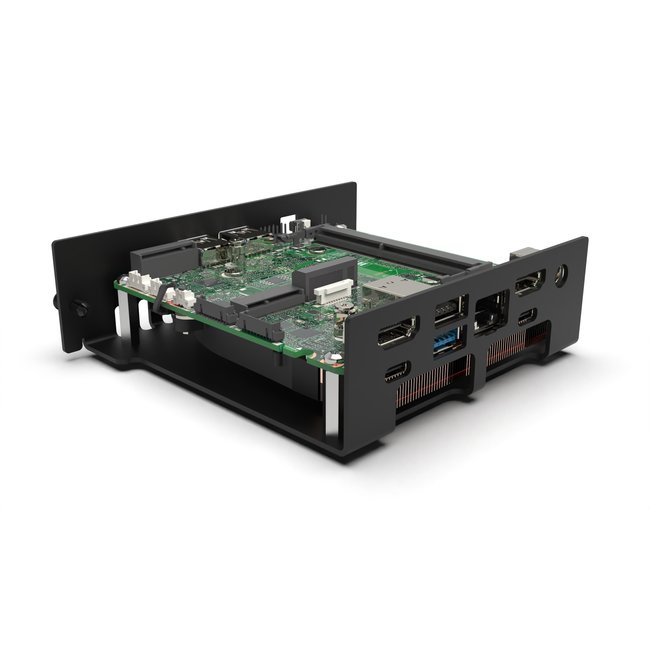

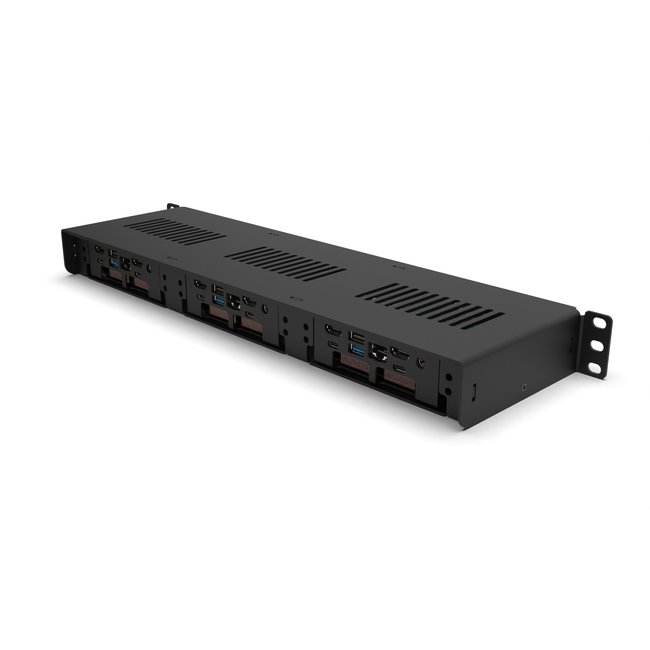

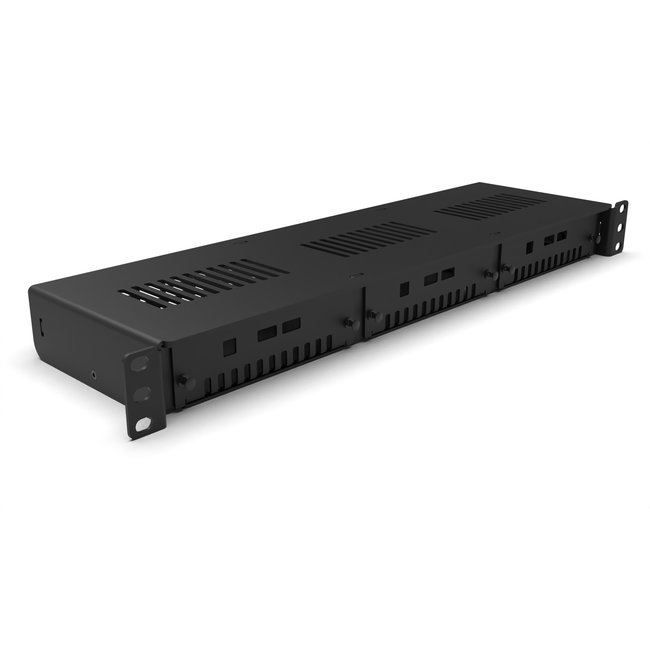

1U rack mount Pro Enclosed 3x NUC11/12/13 Pro Board - FRONT REMOVABLE

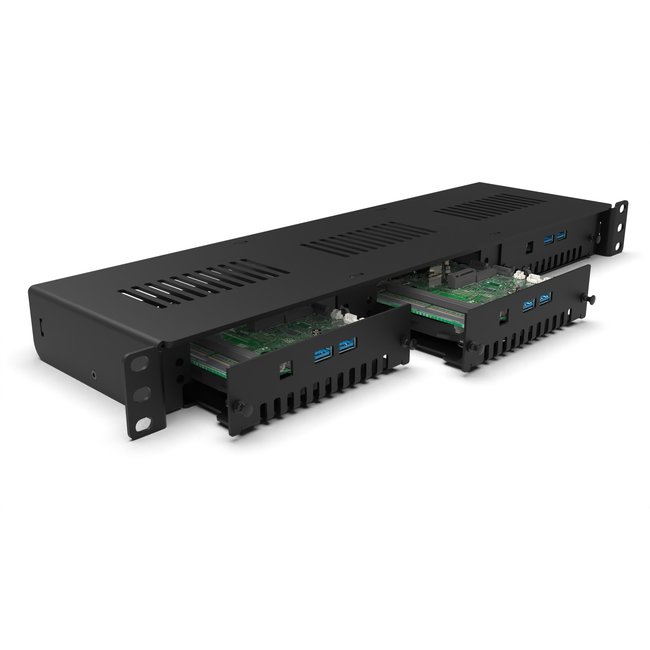

This Pro version front removable rack mount has a closed case with space for multiple SBCs.
This version of the rack mount comes with 3 trays for NUC11 Pro Board.
Fits the below models:
NUC11 Pro board
NUC11/12/13 Pro Boards.... please read carefully!
NUC11/12/13 Pro Boards are/will be available as special products, but since availability is a problem it is also possible to use a full NUC 4"x4" and get the board out of it. The good thing about that solution is that you get the PSU with it!

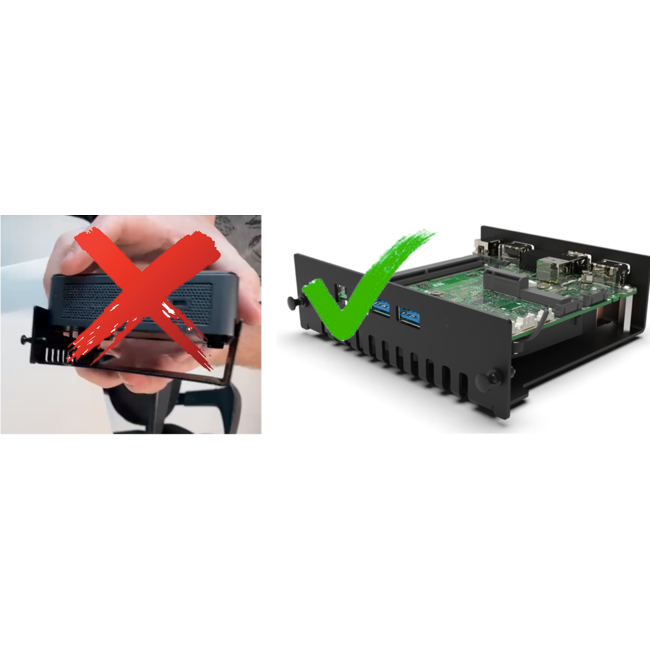

Conclusion: Not meant for the full 4x4 inch NUC, but for the NUC11 Pro board, just the PCB. Although you might buy the full NUC11/12/13 Pro and get out the board to mount in this rack mount.

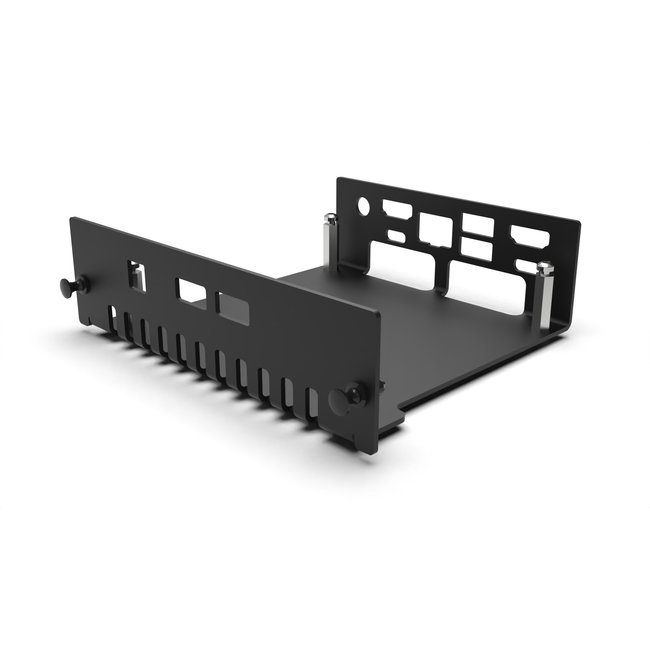

Rack mount and all trays are made of Aluminum with black powder coating
Width: 482,6 mm (19 inch)
Height: 44,5 mm (1U)
Depth: 131 mm
Weight: 940 gram (2.07 lb.)
Other options (separate purchase) are:
- Raspberry Pi Pro Tray
- Jetson Tray
- Raspberry Pi Tray Pro + SSD
- PSU Tray Pro
- I/O panel Tray Pro
- Blank cover
