19 inch 2U mini-ITX case for Dual Mini-ITX short depth rack-mountable Lees meer..

In stock and ships within 24 hours!

SHOW ME ALL MINI-ITX RACK MOUNTS & CASES

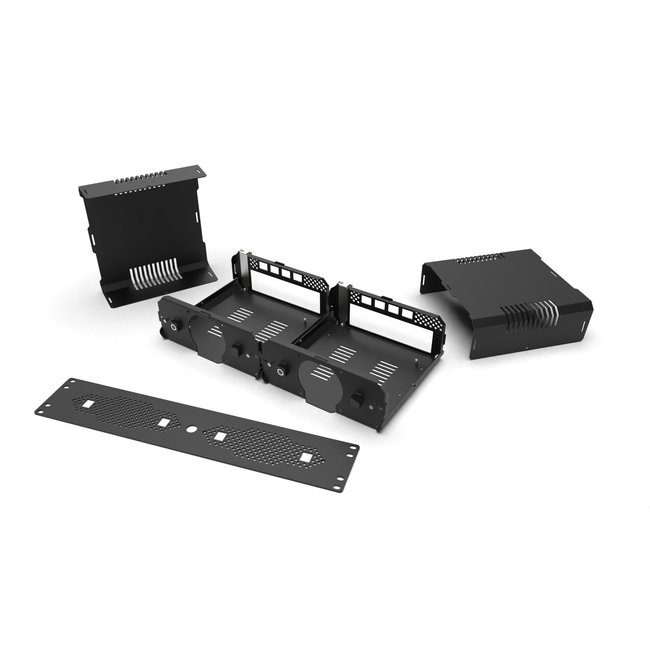

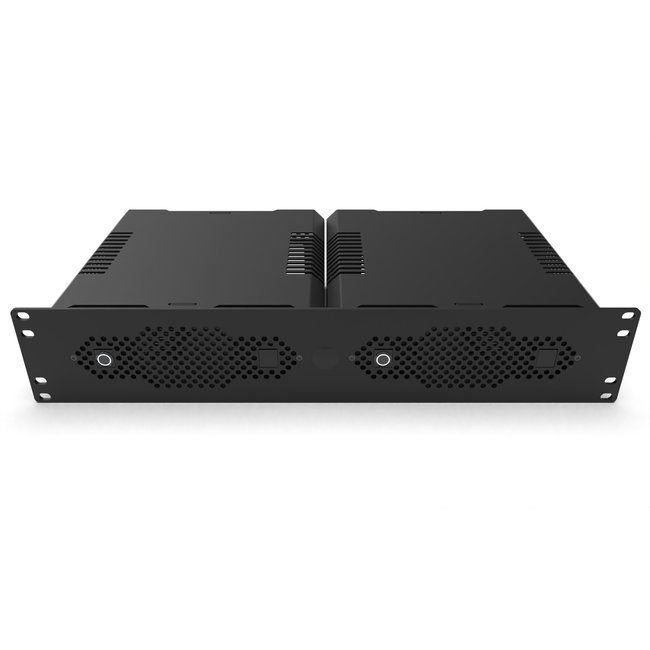

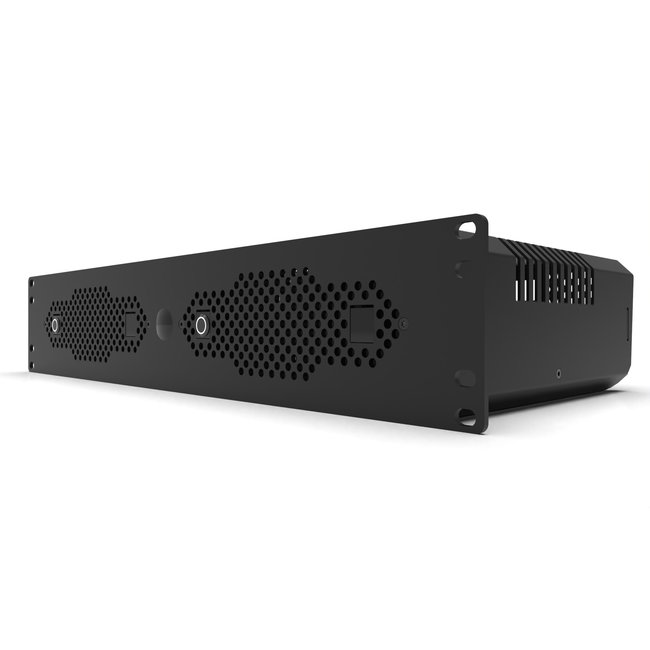

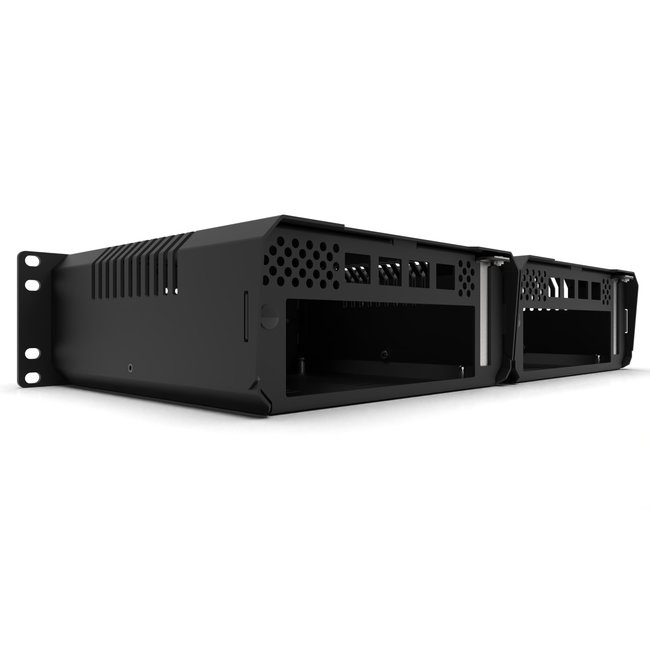

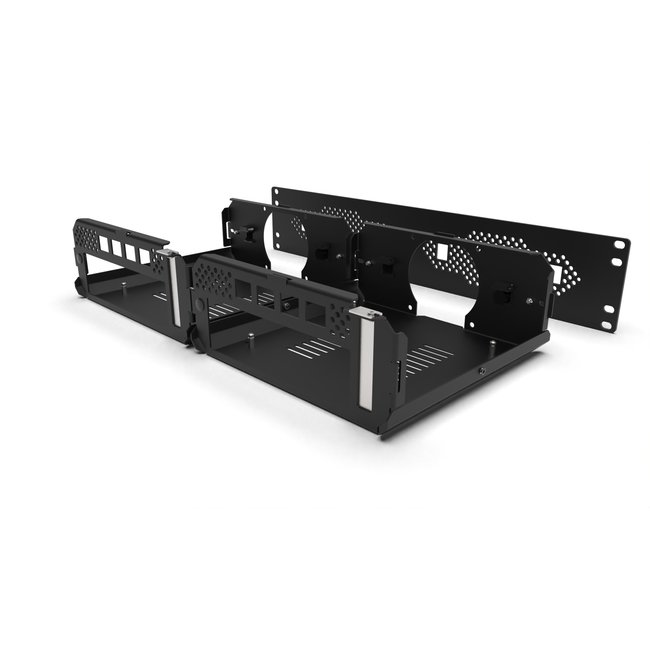

19 inch 2U mini-ITX case for Dual Mini-ITX

Short depth and rack-mountable



Specifications:

  • Fits TWO Mini-ITX motherboards
  • Short depth (223 mm only!)
  • Lightweight: made of high-grade Aluminum

The below specs are per side/mini-ITX

  • Suitable for Pico PSU power supply unit*
  • Max. 2x 2.5" SSD
  • 1x PCI low-profile slot
  • 1x Connector insert in front provided with power button (included)
  • 1x Connector insert in front (available are USB, HDMI, LAN, Audio)**
  • 4x Connector inserts in back (available are USB, HDMI, LAN, Audio)**
  • 80mm fan mounting option front
  • 100% Mini-ITX compatible



Size:

  • Height 2U - 88.5 mm
  • Width 19 inch - 483 mm
  • Depth 223 mm
  • Weight 1530 gram

The max. cooler height is aprox. 67mm (measured from top of CPU, and 75mm measured from top of mainboard PCB.

Included:

  • 2x Power Button with LED
  • PCI low-profile blinds
  • 2x Connector slot blinds in front
  • Screws for mounting Motherboards, HDD and SSD's



* On the back of the case is an 8mm hole for the pico PSU DC input cable, which is compatible with most DC PSUs. (There is a plastic cap on the hole if you don’t use it.

Due to various worldwide and European regulations, we don't offer a PSU. You can locally source a power supply. Pico-PSU might be the choice to go for.



** You can use the small rectangular slots on the back to feed the cable from the I/O plate of the board to the inside front of the case and snap in the connector (USB/HDMI/LAN/Audio)

*** This product weighs too much/is too big to ship with PostNL. Shipping with FedEx/DPD only.
