19 inch rack mount 3U for 12x RASPBERRY Pi (expandable to 16) - FRONT REMOVABLE Read more..

Eligible for Worldwide free shipping. In stock and ships same day!

Especially for the Raspberry Pi models we have developed a new Front-removable 3U rack with space for 12-16 Raspberry Pi's

12-16 Raspberry Pi's + extra connectors in 3U, with space for POE Hat and 2.5" SSD

Front removable! Unique!

Aluminum with black powdercoat

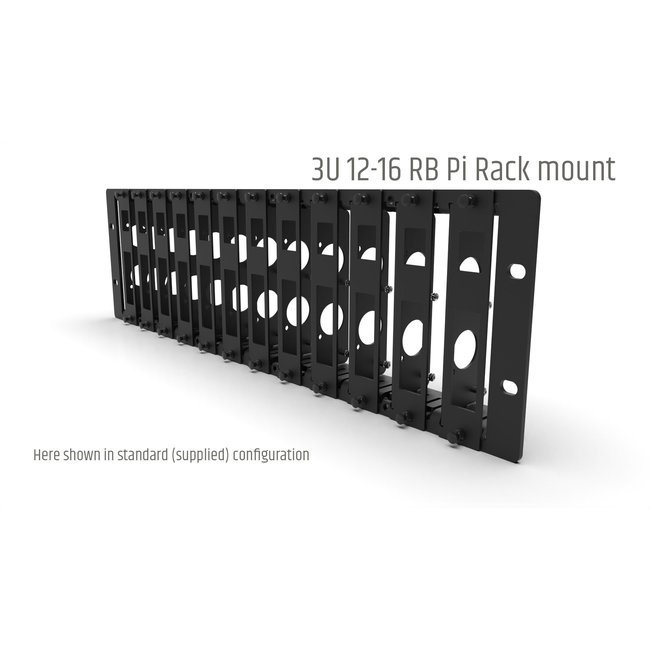

This rack mount comes complete with front-removable trays for 12x Raspberry Pi's. An expansion set with 4 extra brackets is optionally available if you want to use 16 RB Pi's (then the SSDs no longer fit)

Following configurations are possible:

  • 12x Raspberry Pi
  • 12x Raspberry Pi + 12x Insert/Connector (HDMI, LAN, USB etc.)
  • 12x Raspberry Pi + 12x POE HAT
  • 12x Raspberry Pi + 12x SSD 2.5" (7-9 mm thick)
  • 12x Raspberry Pi + 12x Insert/Connector + 12x POE HAT + 12x SSD 2.5" (7-9 mm thick)

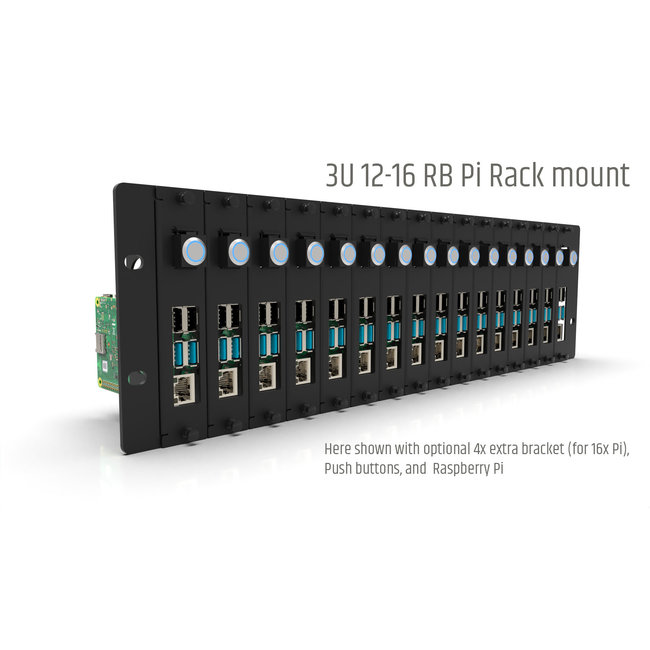

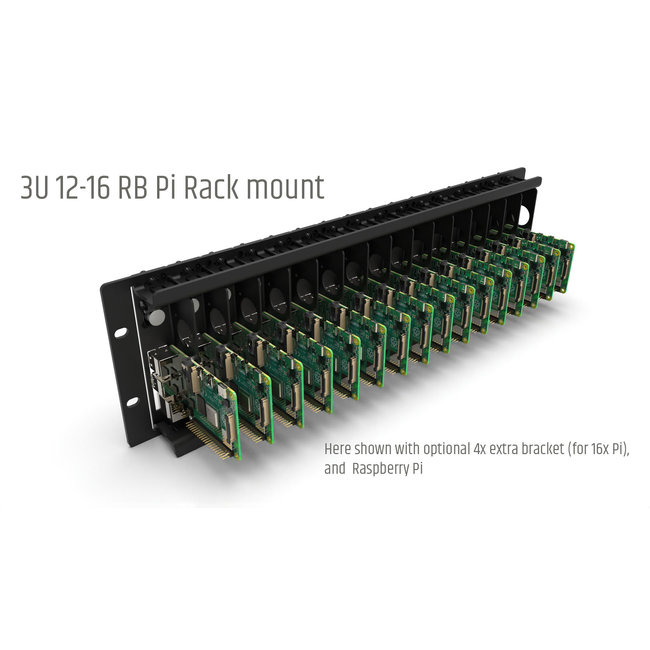

  • 16x Raspberry Pi (expansion set with 4x extra bracket needed) - (no SSD)
  • 16x Raspberry Pi (expansion set with 4x extra bracket needed) + 12x Insert/Connector (HDMI, LAN, USB etc.) - (no SSD)
  • 16x Raspberry Pi (expansion set with 4x extra bracket needed) + 12x POE HAT - (no SSD)
  • 16x Raspberry Pi (expansion set with 4x extra bracket needed) + 12x Insert/Connector + 12x POE HAT - (no SSD)

The screws to secure the Pi to the tray are included. Extra (spare) Fast-Click buttons are also included.

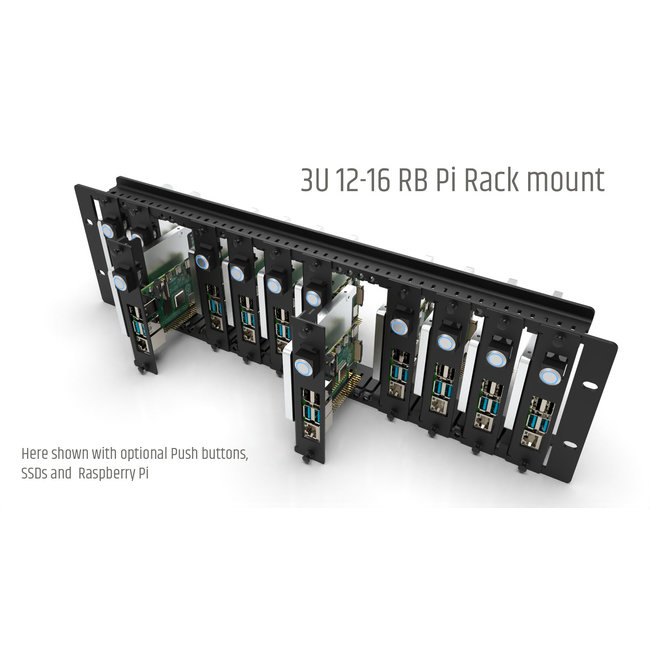

Each Raspberry Pi can be individually removed from the rack mount from the front, while the rest remains in place. Quickly and easily with two handy fast-click buttons. No tools needed!

So changing the SD card is no longer a problem! Simply slide out the RB Pi at the front and voilà: SD card is easily accessible.

Excellent for building a Raspberry Pi Kubernetes cluster

Suitable for the following models:

  • RASPBERRY PI 4 MODEL B
  • RASPBERRY PI 3 MODEL B+
  • RASPBERRY PI 3 MODEL B
  • RASPBERRY PI 2 MODEL B
  • RASPBERRY PI 1 MODEL B+

There is enough space for the Raspberry Pi POE HAT

6 sets of the 6667 (POE Hat mounting kit) required for 12x POE HAT
8 sets of the 6667 (POE Hat mounting kit) required for 16x POE HAT

SSD

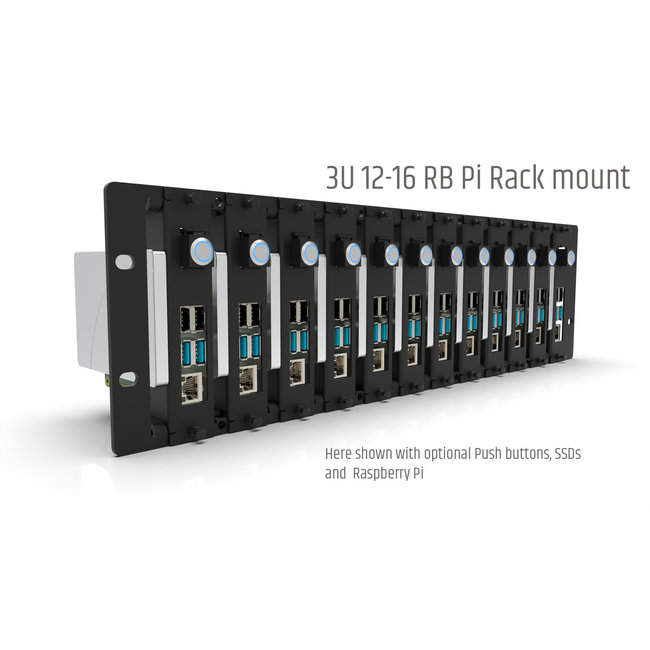

The silver element on the pictures is a 2.5" SSD. We got a lot of requests to develop a rack mount that could combine Raspberry Pi with a 2.5" SSD. So this is the answer. The SSD (7-9 mm thickness) can be mounted with the cable at the back (as shown here) or cable at the front. So in this new 3U Rack mount for 12-16 Raspberry Pi you can mount 12x Pi with SSD (7-9 mm thick) or 16x Pi without SSD (you need to add 4x additional bracket to expand from 12 to 16 Pis).

ACCESSORIES

Per Raspberry Pi 1 extra slot is available for an insert/connector.

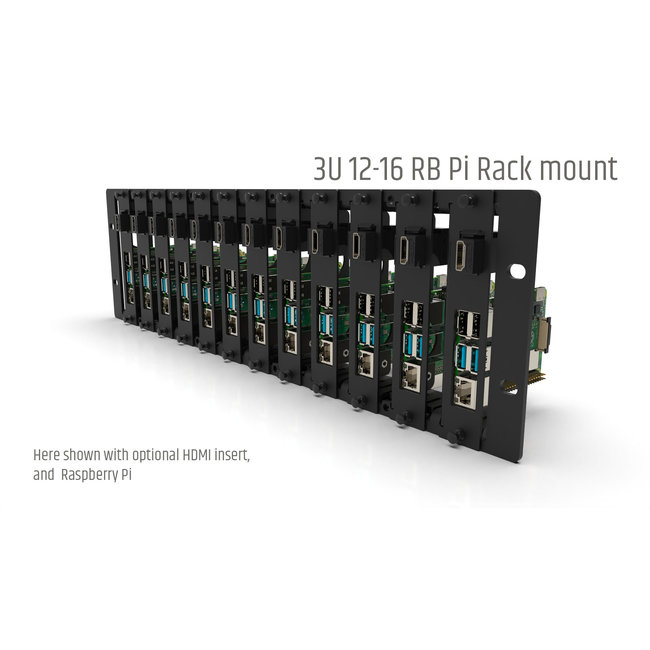

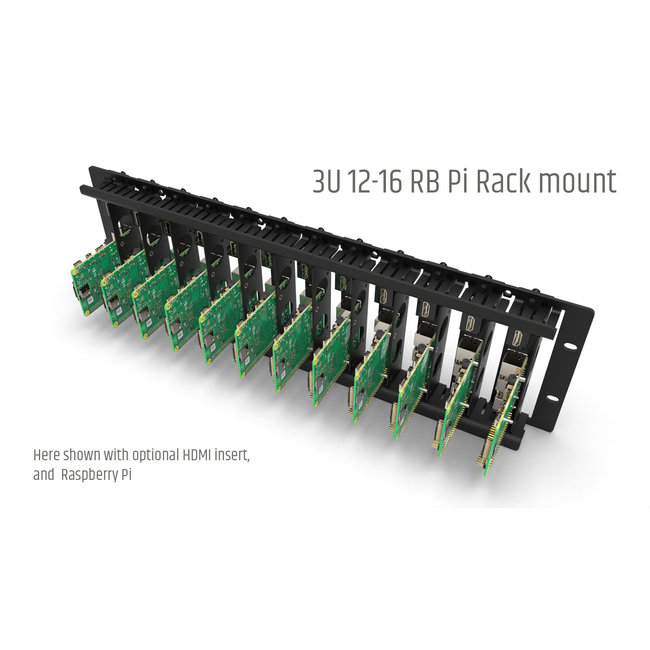

For these inserts for connectors, you can optionally (not included) choose HDMI (item no. 6654), USB-C (item no. 6554), or Audio (item no. 6568).

Sizes/weight

  • Depth: 36 mm
  • Width: 48,3 cm (19”)
  • Height: 132,5 mm (fits 3U - 5,25”)
  • Weight: 640 gram
